Timing Belt, 522-3M-15 MPN:522-3M-15
Timing Belt, 522-3M-15

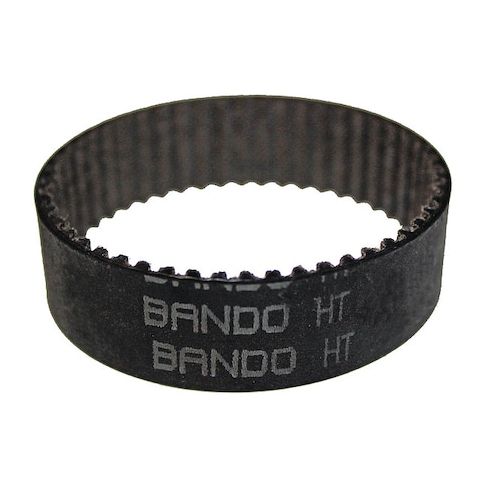

The Bando Synchro-Link(R) HT Timing Belt is a high-performance solution for demanding applications requiring high horsepower. Made with neoprene and fiberglass reinforced with nylon coating, this belt offers exceptional durability and resistance to temperature extremes. With a pitch of 3mm and 174 teeth, it provides precise timing and synchronization for smooth operation. Suitable for use in a variety of industries, including automotive, aerospace, and heavy machinery, this belt is designed to withstand the rigors of high-speed applications. Its closed-loop design and compact size make it an ideal choice for applications where space is limited.
Top product features:
- Neoprene belt material provides durability and resistance to heat and chemicals.
- Synchro-Link(R) HT belt series design enables high horsepower applications.
- Fiberglass reinforcing cord adds strength and stability to the timing belt.
Top product applications:
- High Horsepower
- High Torque Applications
- High Speed Applications
Timing Belt, Belt Material Neoprene, Belt Series Synchro-Link(R) HT, Industry Number 522-3M-15, Number of Teeth 174, Pitch 3 mm, Pitch Length 522 mm, Tooth Location One Side, Top Width 15 mm, Application High Horsepower, Belt Coating Nylon, Belt Trade Size HTD, Length Type Closed Loop, Maximum Operating Temperature 194 Degrees F, Minimum Operating Temperature -22 Degrees F, Outside Length Not Applicable, Reinforcing Cord Material Fiberglass
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.54
- Package Width: 1.77
- Package Height: 6.54
- Package Weight: 0.04
Product info last updated on March 28, 2026 3:23pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
