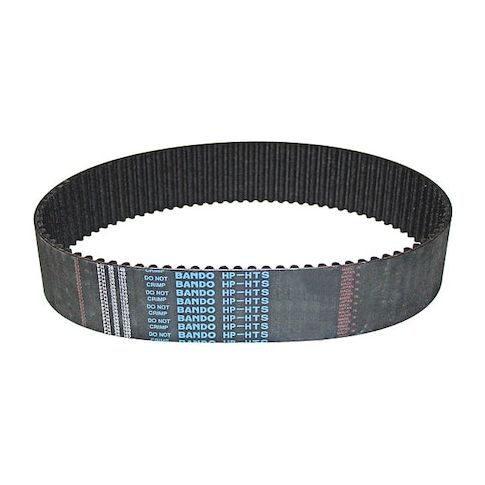

Curvilinear Industrial Timing Belt, 220 Teeth, Neoprene, 1760 mm Wide, 8 mm Pitch, 1760-8M-20 MPN:1760-8M-20
Curvilinear Industrial Timing Belt, 220 Teeth, Neoprene, 1760 mm Wide, 8 mm Pitch, 1760-8M-20
The Bando SynchroHT Timing Belt is a high-performance solution for high horsepower applications, featuring a neoprene belt material with fiberglass reinforcing cord for added strength and durability. With a 220-tooth design and 8mm pitch, this belt provides precise timing and synchronization for a wide range of industrial uses, including power generation, pumps, and compressors. Its operating temperature range of -22°F to 194°F makes it suitable for various environments, and its closed-loop design ensures reliable performance. Available in a compact package, this timing belt is ideal for applications requiring precision and reliability.
Top product features:
- It has a neoprene belt material for durability and resistance to heat and chemicals.
- It is designed for high horsepower applications with a curvilinear tooth shape for smooth operation.
- It has a closed loop design with one side tooth location for efficient power transmission.
Top product applications:
- High Horsepower
- High Temperature Applications
- Heavy Duty Industrial Equipment
Timing Belt, Belt Material Neoprene, Belt Series HT, Industry Number 1760-8M-20, Number of Teeth 220, Pitch 8 mm, Pitch Length 1,760 mm, Tooth Location One Side, Top Width 20 mm, Application High Horsepower, Belt Trade Size HTD, Length Type Closed Loop, Maximum Operating Temperature 194 Degrees F, Minimum Operating Temperature -22 Degrees F, Reinforcing Cord Material Fiberglass, Tooth Shape Curvilinear
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 1.00
- Package Height: 12.00
- Package Weight: 0.41
Product info last updated on January 22, 2026 7:04pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
