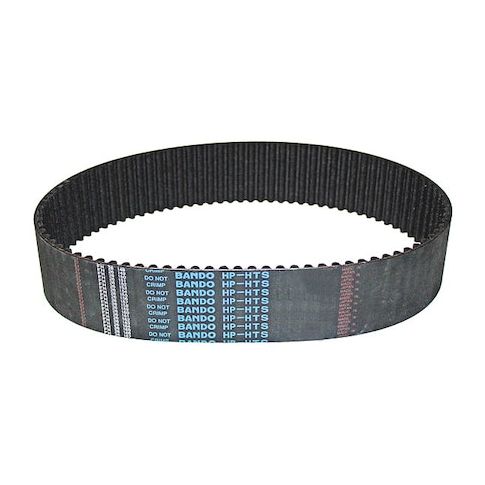

TimingBelt, SynchroHT, Neoprene, 560-8M-20 MPN:560-8M-20
TimingBelt, SynchroHT, Neoprene, 560-8M-20
The Bando TimingBelt, SynchroHT, Neoprene, 560-8M-20 is a high-performance timing belt designed for high horsepower applications. Its neoprene material and fiberglass reinforcing cord provide excellent durability and resistance to heat and cold, making it suitable for use in a wide range of industries. With a pitch of 8 mm and a pitch length of 560 mm, this belt is ideal for applications requiring precise timing and synchronization. Its closed loop design and curvilinear tooth shape ensure smooth and efficient operation, making it a reliable choice for heavy-duty applications. Suitable for use in temperatures ranging from -22°F to 194°F.
Top product features:
- Neoprene belt material provides durability and resistance to heat and chemicals.
- Curvilinear tooth shape allows for smooth and efficient power transmission.
- Fiberglass reinforcing cord adds strength and stability to the belt.
Top product applications:
- High Horsepower
- Closed Loop
- High-Temperature Applications
Timing Belt, Belt Material Neoprene, Belt Series HT, Industry Number 560-8M-20, Number of Teeth 70, Pitch 8 mm, Pitch Length 560 mm, Tooth Location One Side, Top Width 20 mm, Application High Horsepower, Belt Trade Size HTD, Length Type Closed Loop, Maximum Operating Temperature 194 Degrees F, Minimum Operating Temperature -22 Degrees F, Reinforcing Cord Material Fiberglass, Tooth Shape Curvilinear
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 1.00
- Package Height: 12.00
- Package Weight: 0.13
Product info last updated on April 20, 2026 10:16am UTC
Category: Bearings, V-belts and Power Transmission Equipment
