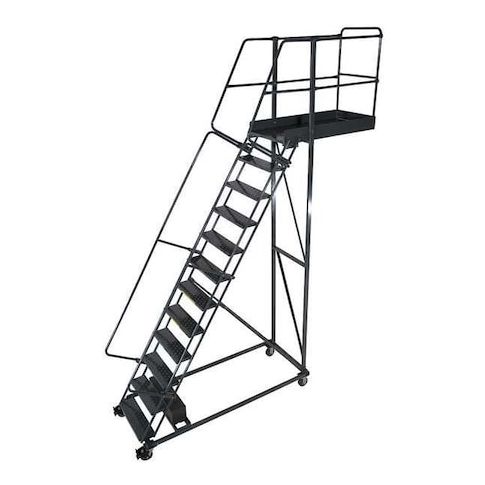

Cantilever Rolling Ladder, 14 Steps, 300 lb Capacity, Steel, 140 in Platform Height MPN:CL-14-14-P

• A steel cantilever rolling ladder, the BALLYMORE CL-14-14-P 182 ships unassembled and features a counterweighted cantilever design with a self-supporting, unsupported configuration, 14 steps, and a rated maximum load of 300 lb. Overall height is 182 in with a maximum reach height of 18.3 ft and a platform located at 140 in.

  Key Features:

  • Item type: Cantilever Rolling Ladder (cantilever ladder)
  • Assembly: Unassembled
  • Material/finish/color: Steel, powder coated, gray
  • Steps/platform: 14 steps
  • platform width 24 in, platform depth 14 in, platform height 140 in
  • Step dimensions/tread: Step width 24 in, step depth 7 in
  • perforated treads
  • Load capacity: Rated maximum load: 300 lb
  • Overall dimensions: Overall height 182 in
  • overall depth 96 in
  • overall width 40 in
  • Base footprint: Base length/depth 96 in
  • base width/bottom width 40 in
  • Reach/clearance: Reach height - maximum 18.3 ft
  • vertical clearance height 11.4 ft
  • Support/weight: Counterweighted cantilever design
  • self-supporting (no external support required)
  • weight 475 lb
  • Mobility/locking: Casters (2 rigid, 2 swivel), 5 in diameter
  • include a locking mechanism (actuation type not specified)
  • Handrails: Double handrails included
  • handrail height 3.5 ft
  • Folding: Not foldable
  • Standards/warranty: ANSI 14.7
  • Climbing angle: 59 degrees (as specified)
