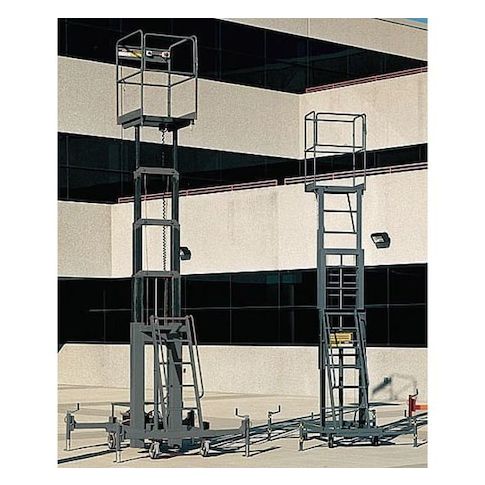

Telescoping Lift, Push-Around, Manual, 15 ft Platform Height, 21 ft Work Height, 300 lb Capacity MPN:BL-315
Elevate your work to new heights with the Ballymore Telescoping Lift. Perfect for mobile personnel lifts, this drive push-around lift is designed for easy maneuverability and versatility. With a 300 lb load capacity and maximum work height of 21 ft, it's ideal for tasks that require reaching high shelves, changing light bulbs, or accessing hard-to-reach areas. The lift's compact stowed height of 6.5 ft and narrow footprint make it a great fit for tight spaces, and its manual power source ensures reliable operation. Suitable for a variety of industries and applications, including construction, maintenance, and warehouse work.
Top product features:
- Telescoping design allows for compact stowage and extended reach.
- Drive push-around capability enables easy mobility and positioning.
- Platform height adjusts to a maximum of 15 ft, providing access to high areas.
Top product applications:
- Construction Site
- Warehouse Stockroom
- Facilities Maintenance
Telescoping lift with a 28 in x 20 in steel-deck platform that raises to a platform height of 15 ft (maximum work height 21 ft). Manual push-around drive
- outriggers
- casters (2 rigid, 2 swivel)
- caster diameter 6 in. Load capacity 300 lb and gross vehicle weight 590 lb. Stowed/closed height listed at 78 in (6 ft 6 in).
Key Features:
- Item: Telescoping Lift (Personnel Lifts)
- Platform: 28 in W x 20 in D
- platform length 20 in, platform depth 20 in
- Platform heights: lowered 6.3 ft, elevated 15 ft, max work height 21 ft
- Load capacity: 300 lb
- gross vehicle weight: 590 lb
- unit weight: 590 lb
- Power/mobility: Power source manual
- drive/mobility: Push-Around
- Casters: (2) rigid, (2) swivel
- caster diameter 6 in
- Outriggers: footprint L 65 in x W 68 in (outrigger length 65 in, width 68 in)
- Overall dimensions: length 65 in, width 32 in, overall height 252 in
- Ground clearance: 6 in
- Number of steps: 6
- handrail height: 3.5 ft
- Material: Steel (deck)
- Includes: Large diameter cylinder with chrome plated ram and fluid restrictor
- low pressure system includes bypass pressure valve, check valve, base-mounted lowering valve
- Standards: ANSI (specific standard/version not specified)
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 48 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 65.00
- Package Width: 32.00
- Package Height: 78.00
- Package Weight: 590.00
