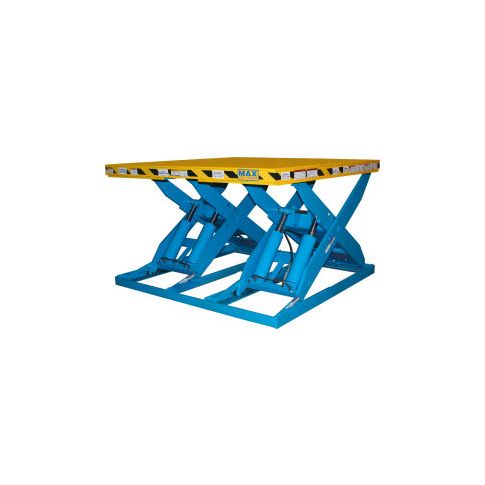

Ballymore Max-Double Wide Scissor Lift Table Foot Operated 10000 lb. Cap. 50"L x 48"W 460V BM-MXW-10K-43R-4850-F

The term double wide is exactly that. It's two scissor assemblies welded into one frame. The purpose of this is to offer wider tops that are not available with a single scissors. A standard rule is that the table top cannot be 2 feet wider than the base frame. An example of this is that a 48" wide base table can have up to a maximum top width of 72". However if this was a double wide 48" wide base the top could be 12 feet wide. The other benefits of double wide base tables are increased capacity and increased edge loading. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" internally mounted 1.5 hp 115/230v-i-60 or 230/460-3-60 intermittent duty tenv super torque motor 115v operating control voltage nema constant pressure. Magnet backed up-down push button control station with 10' straight or coiled cord all controller components meet ul and/or csa specifications cylinders with internal stops 10' power cord (connector not included) integral safety restraint maintenance bars s.A.E. Hoses and fittings nema - 1 prewired controls and electrical connectors. Control box contains contactor control transformer thermal overload and fuse hard chrome plated polished shafting hydraulic cylinder piston rods surfaces degreased descaled and finished with safety yellow and blue enamel smooth steel top with yellow and black safety strips internal gear pump with check valve relief valve solenoid valve includes hydraulic oil and filter
