Three-Phase General Purpose Motor, 5 HP, 215TC Frame, 208-230/460V AC Voltage MPN:CEM3708T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9823362

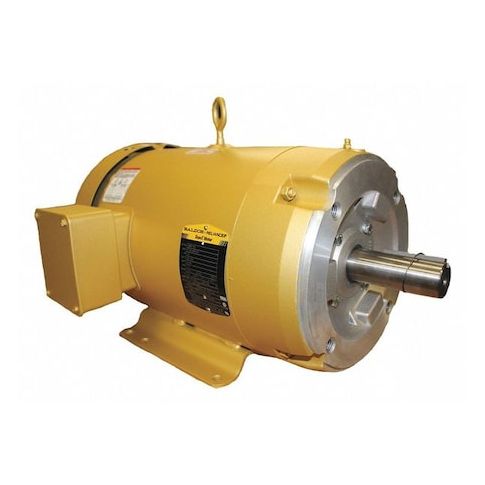

Three-Phase General Purpose Motor, 5 HP, 215TC Frame, 208-230/460V AC Voltage
This 5 HP three-phase general purpose motor from BALDOR-RELIANCE is designed for a wide range of applications requiring continuous duty operation. With a totally enclosed fan cooled motor enclosure, it operates efficiently in various environments. The motor's 89.5% nominal efficiency and 1.15 service factor make it suitable for high-demand applications. Its 215TC frame and 208-230/460V AC voltage capabilities allow for flexibility in installation. Suitable for use in industrial settings, such as manufacturing facilities, this motor is also compliant with CSA and CSA EEV standards, ensuring reliability and safety. Its compact size and CW/CCW rotation make it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty Operation
Top product applications:
- Pump applications such as water treatment, chemical processing, and wastewater treatment
- Conveyor systems in manufacturing and material handling facilities
- Fans and blowers in HVAC and industrial ventilation systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1160 rpm, Frame 215TC, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 14.4/7.2 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.00
- Package Width: 16.50
- Package Height: 17.50
- Package Weight: 161.00
Product info last updated on February 4, 2026 3:39am UTC
Category: Motors
