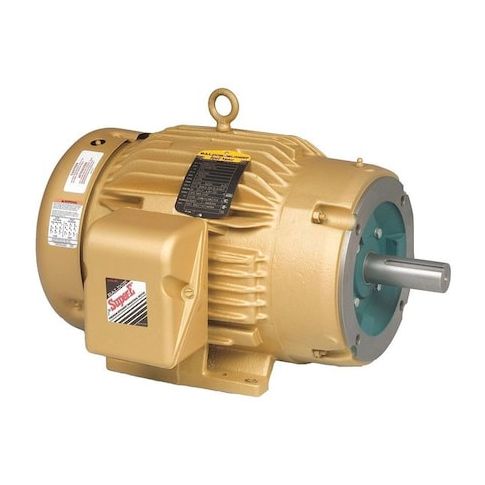

Three-Phase General Purpose Motor, 7 1/2 HP, 213TC Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:CEM3770T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9823326
Three-Phase General Purpose Motor, 7 1/2 HP, 213TC Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM
This high-performance 7 1/2 HP three-phase general purpose motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial and commercial use. With a totally enclosed fan cooled motor enclosure, it provides reliable operation and protection from harsh environments. The motor's 1,770 nameplate RPM and 91.7% nominal efficiency make it an ideal choice for applications requiring high torque and efficiency. Suitable for continuous duty, this motor is perfect for use in manufacturing, material handling, and other industrial settings where reliability and performance are crucial. Its compact design and easy mounting make it a versatile solution for various applications.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Totally enclosed fan cooled motor enclosure design provides a safe and reliable operating environment.
- Ball motor bearings ensure smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Pumps
- Compressors
- Manufacturing machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1,770, Frame 213TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 19/9.5 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.00
- Package Width: 28.30
- Package Height: 19.20
- Package Weight: 170.00
Product info last updated on April 1, 2026 3:11am UTC
Category: Motors
