Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 230/460V AC Voltage, 3490 rpm Nameplate RPM MPN:CEM3771T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9823317

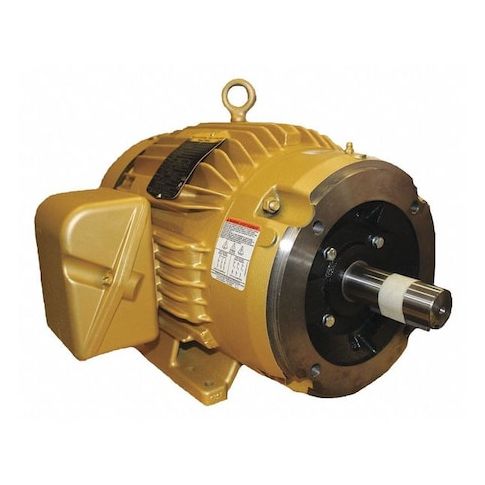

Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 230/460V AC Voltage, 3490 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 3490 rpm, Frame 215TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.6/11.8 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 28.50
- Package Width: 18.50
- Package Height: 19.20
- Package Weight: 182.00
Product info last updated on February 28, 2026 6:53pm UTC
Category: Motors
