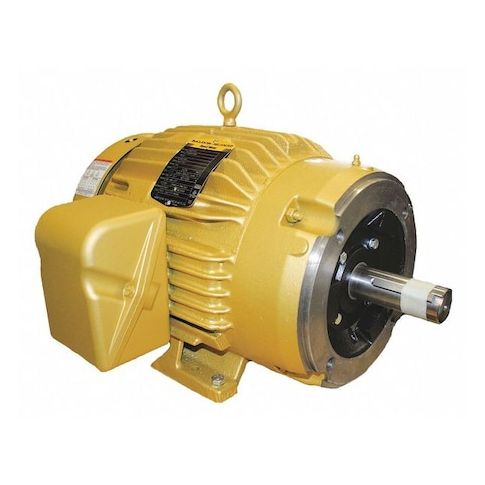

Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 230/460V AC Voltage, 1760 rpm Nameplate RPM MPN:CEM3774T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9823301
Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 230/460V AC Voltage, 1760 rpm Nameplate RPM
This 10 HP three-phase general purpose motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial manufacturing, oil and gas, and water treatment plants. Its totally enclosed fan cooled design ensures reliable operation in harsh environments, while its 91.7% nominal efficiency provides significant energy savings. With a service factor of 1.15 and continuous duty rating, this motor can handle demanding applications. Its compact 215TC frame and C-face mounting make it easy to integrate into existing systems. Suitable for use in 230/460V AC systems, this motor is a reliable and efficient choice for industrial applications.
Top product features:
- Three-phase operation allows for efficient power transmission and utilization.
- Totally enclosed fan cooled design provides a safe and reliable operating environment.
- Ball bearings enable smooth and quiet motor operation.
Top product applications:
- Industrial Pump
- Machine Tool
- Compressor
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 1760 rpm, Frame 215TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 24.4/12.2 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.00
- Package Width: 28.70
- Package Height: 18.80
- Package Weight: 195.00
Product info last updated on February 18, 2026 4:16pm UTC
Category: Motors
