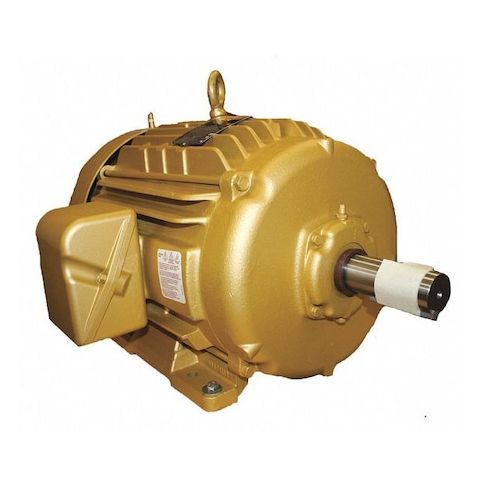

Three-Phase General Purpose Motor, 7 1/2 HP, 254T Frame, 230/460V AC Voltage, 1180 rpm Nameplate RPM MPN:EM2276T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9818943
Three-Phase General Purpose Motor, 7 1/2 HP, 254T Frame, 230/460V AC Voltage, 1180 rpm Nameplate RPM
This 7.5 HP three-phase motor is designed for general purpose applications, providing reliable and efficient performance in a variety of settings. Its totally enclosed fan cooled design ensures optimal cooling and protection from dust and moisture, while its rigid base mounting type and ball bearings provide stable and durable operation. With a nameplate RPM of 1180 and a nominal efficiency of 91%, this motor is ideal for continuous duty applications, such as pumping, conveying, and power transmission. Its compact 254T frame and 230/460V AC voltage make it suitable for use in a range of industries, including manufacturing, oil and gas, and more.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Totally Enclosed Fan Cooled Motor Enclosure Design provides a safe and reliable operating environment.
- Ball Motor Bearings ensure smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Industrial Pumping Systems
- Manufacturing Equipment
- Conveyor Belt Systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1180 rpm, Frame 254T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 22.0/11.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 20.00
- Package Height: 20.00
- Package Weight: 298.00
