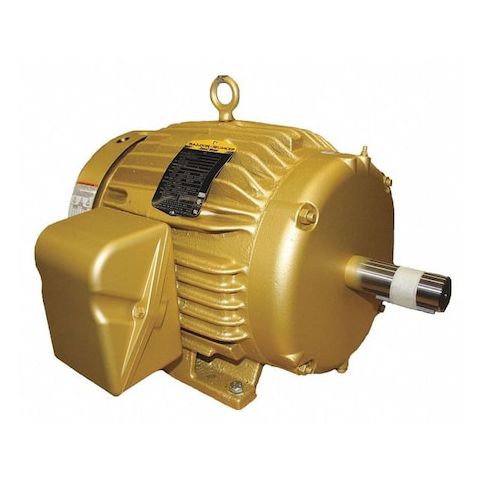

Three-Phase General Purpose Motor, 10 HP, 215T Frame, 230/460V AC Voltage, 3490 rpm Nameplate RPM MPN:EM3771T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8628532
Three-Phase General Purpose Motor, 10 HP, 215T Frame, 230/460V AC Voltage, 3490 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 3490 rpm, Frame 215T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.6/11.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 28.50
- Package Width: 18.30
- Package Height: 19.00
- Package Weight: 161.00
Product info last updated on January 22, 2026 4:41am UTC
Category: Motors
