Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 230/460V AC Voltage, 1760 rpm Nameplate RPM MPN:VEM3774T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8561034
Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 230/460V AC Voltage, 1760 rpm Nameplate RPM

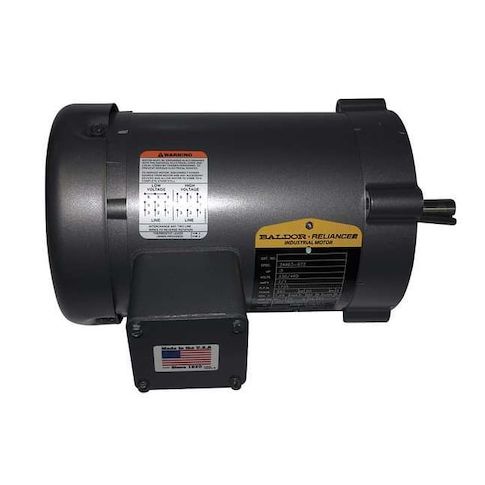

This 10 HP three-phase general purpose motor from BALDOR-RELIANCE is designed for continuous duty in a wide range of applications, including industrial processes, manufacturing facilities, and commercial settings. With a nameplate RPM of 1760 and a high efficiency rating of 91.7%, this motor provides reliable and cost-effective power for demanding operations. Its totally enclosed fan cooled design and cast iron frame ensure durability and long-lasting performance, while the ball bearings provide smooth and quiet operation. Suitable for use in applications such as pumps, fans, and conveyor systems, this motor is a reliable choice for any industry that requires a high-torque motor.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled motor enclosure design
- Ball motor bearings
Top product applications:
- Industrial machinery
- Material handling equipment
- Pumps and compressors
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 1760 rpm, Frame 215TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 24.4/12.2 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.10
- Package Width: 28.40
- Package Height: 18.70
- Package Weight: 195.00
Product info last updated on February 25, 2026 6:09pm UTC
Category: Motors
