Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56 Frame MPN:EL3504
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8467051

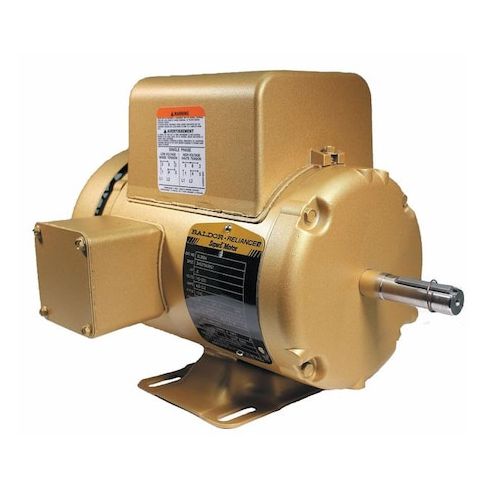

Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56 Frame
This 1/2 hp BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is designed for a wide range of applications, including industrial machinery, commercial equipment, and residential appliances. Its single-phase design and 115/230V AC voltage make it versatile for use in various settings. The motor's capacitor-start/run design provides efficient power conversion, ensuring reliable operation and minimizing energy losses. With a continuous duty cycle and totally enclosed fan-cooled design, this motor is suitable for applications where high temperatures and reliability are essential. Its compact size and lightweight design make it easy to install and maintain, making it an ideal choice for various industries and applications.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and reliable operation in harsh environments.
- Capacitor-Start/Run motor design allows for efficient and cost-effective operation.
- Continuous duty cycle capability enables the motor to operate for extended periods without interruption.
Top product applications:
- Pumps
- Fans
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 2.3 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.70
- Package Width: 11.70
- Package Height: 10.70
- Package Weight: 30.30
Product info last updated on February 26, 2026 12:34pm UTC
Category: Motors
