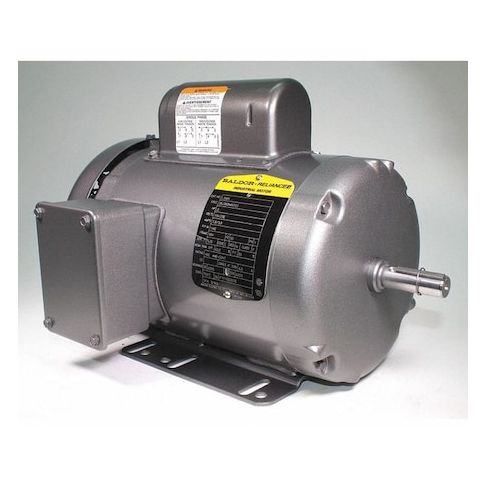

Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56H Frame MPN:L3505
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8465922
Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56H Frame
The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/230V AC environments, this motor is perfect for fans, blowers, and pumps in commercial and industrial settings. With a 1/2 hp rating and 1,200 RPM nameplate speed, it provides consistent performance and high torque output. Its totally enclosed fan-cooled design ensures long motor life and reduced maintenance, while its compact 56H frame fits easily into tight spaces. Ideal for continuous duty cycles, this motor is a cost-effective and dependable choice for applications requiring reliable operation.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Single Phase Motor Design for compatibility with a wide range of power sources
- Continuous Duty Cycle for reliable operation under heavy loads
Top product applications:
- Pumps
- Fans
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,200 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.0 A, 56H Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.40
- Package Width: 11.40
- Package Height: 10.30
- Package Weight: 44.50
Product info last updated on March 12, 2026 2:23pm UTC
Category: Motors
