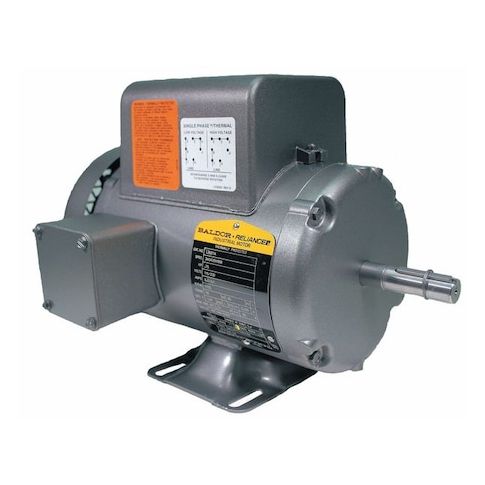

Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 56 Frame, 115/230V AC Voltage MPN:L3507A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8460611
Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 56 Frame, 115/230V AC Voltage
This BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and versatile solution for a wide range of applications, including industrial and commercial use. With a 3/4 hp output and 1,800 RPM nameplate speed, it is suitable for applications requiring moderate power and speed. The motor's capacitor-start/run design provides efficient and reliable operation, while its totally enclosed fan-cooled design ensures optimal performance in various environments. Its compact size and lightweight design make it easy to install and maintain, making it an ideal choice for applications such as conveyor systems, pumps, and fans.
Top product features:
- Totally Enclosed Fan Cooled design provides improved protection against dust and moisture
- Motor Thermal Protection is automatically triggered to prevent overheating
- Capacitor-Start/Run motor design allows for efficient operation at a wide range of loads
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.1 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.50
- Package Width: 11.90
- Package Height: 10.90
- Package Weight: 33.30
Product info last updated on February 19, 2026 5:13pm UTC
Category: Motors
