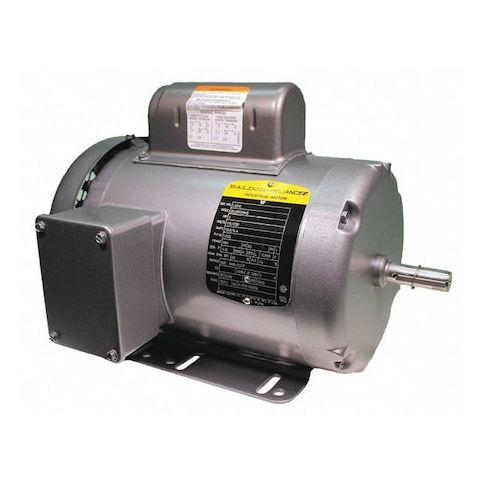

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56H Frame
The BALDOR-RELIANCE 1 hp Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/230V AC environments, this motor is perfect for industrial and commercial settings where continuous operation is required. With a 56H frame and totally enclosed fan-cooled design, it provides excellent protection against dust and moisture. The motor's 1.15 service factor ensures it can handle demanding tasks, while its 40°C maximum ambient temperature rating makes it ideal for use in warm environments. Ideal for applications such as conveyor systems, pumps, and fans, this motor delivers reliable performance and long-lasting durability.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure
- Motor Design Capacitor-Start/Run for Efficient Operation
- Continuous Duty Cycle for Prolonged Use
Top product applications:
- Pump applications
- Fans and blowers
- Conveyors and packaging equipment
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.5 A, 56H Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.20
- Package Width: 13.90
- Package Height: 12.60
- Package Weight: 39.70
