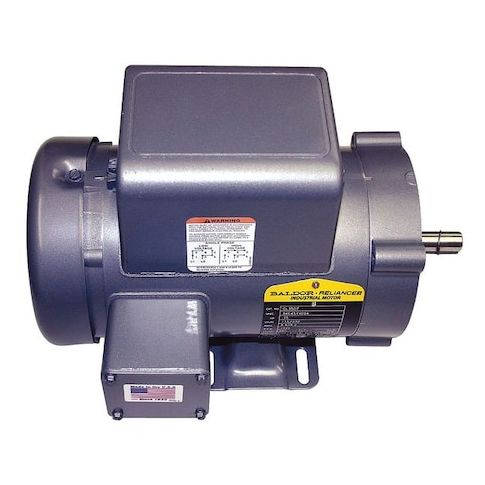

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56H Frame
The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in single-phase systems, this 1 hp motor operates at 3,600 RPM and can handle continuous duty cycles. With a 56H frame and totally enclosed fan-cooled design, it provides excellent protection against environmental factors. The motor's 1.25 service factor and Class B insulation ensure a long lifespan, making it ideal for use in industrial settings, such as manufacturing, material handling, and pumping systems. Its compact size and lightweight design also make it easy to install and maintain.
Top product features:
- Capacitor-start/run design for improved motor efficiency and reliability
- Totally enclosed fan-cooled motor design for reduced noise and increased durability
- Single-phase motor design for simplified installation and operation
Top product applications:
- Industrial conveyor systems
- Pumps and water treatment systems
- Fans and blowers for ventilation and air circulation
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 4.7 A, 56H Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.50
- Package Width: 11.50
- Package Height: 11.00
- Package Weight: 38.00
