Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 48 Frame MPN:L3409M
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8409624

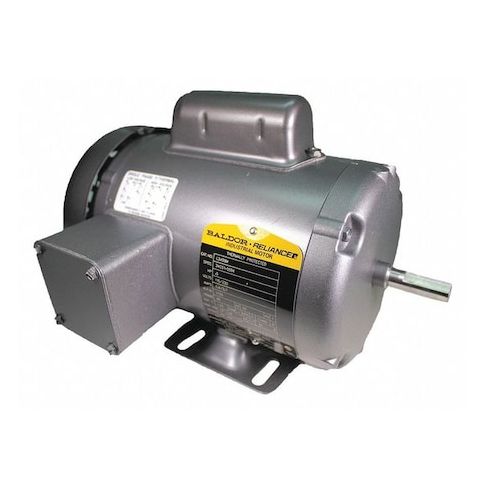

Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 48 Frame
The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for various applications. Suitable for use in 115/230V AC environments, this motor operates at 1,800 RPM and features a 1/2 hp HP rating. With a continuous duty cycle and maximum ambient temperature of 40 Degrees C, it can handle demanding tasks. The motor's totally enclosed fan-cooled design ensures optimal performance and protection. Ideal for use in industrial settings, the BALDOR-RELIANCE motor is a versatile choice for applications such as pumps, fans, and conveyor systems, providing a reliable and efficient solution for a wide range of uses.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Continuous duty cycle capability for reliable operation in demanding applications
- Single phase motor design with capacitor-start/run configuration for efficient and quiet operation
Top product applications:
- Pump applications
- Conveyor systems
- Material handling equipment
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.7 A, 48 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 11.40
- Package Height: 10.50
- Package Weight: 26.70
Product info last updated on February 2, 2026 1:13pm UTC
Category: Motors
