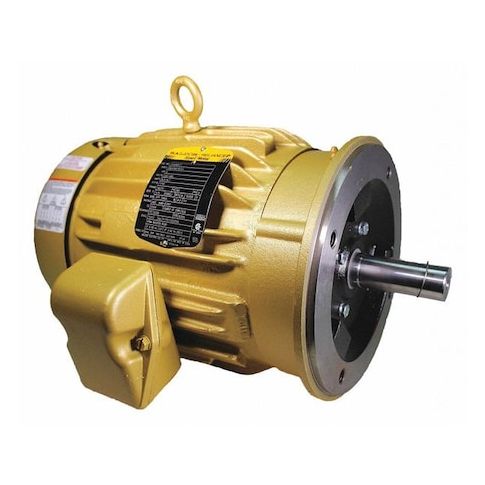

Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 208-230/460V AC Voltage, 16 in Overall Length MPN:VEM3661T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8406422
Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 208-230/460V AC Voltage, 16 in Overall Length
This 3 HP three-phase general purpose motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial and commercial use. Its totally enclosed fan cooled motor enclosure ensures reliable operation in harsh environments, while its 89.5% nominal efficiency reduces energy costs. With a 1.15 service factor and continuous duty rating, this motor is suitable for demanding applications. Its compact 182TC frame and C-face mounting make it easy to integrate into existing systems. Suitable for use in factories, warehouses, and other industrial settings, this motor provides reliable and efficient power for a variety of applications.
Top product features:
- Three-phase design for efficient operation
- Totally enclosed fan-cooled motor enclosure for reduced heat and noise
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pump applications
- Fans and blowers
- Machine tools
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1755 rpm, Frame 182TC, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.2/4.1 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.50
- Package Width: 16.00
- Package Height: 15.00
- Package Weight: 100.00
Product info last updated on February 26, 2026 5:50am UTC
Category: Motors
