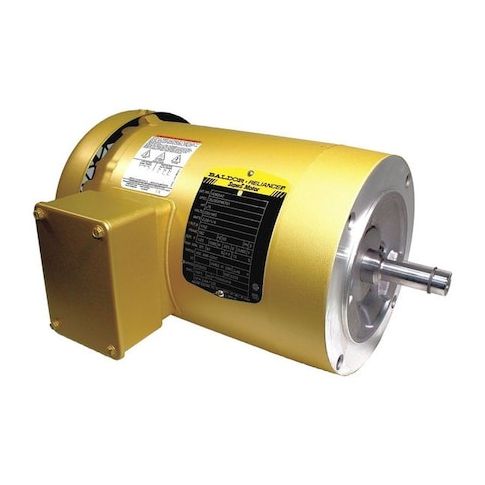

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM MPN:VEM3542
Free Shipping
In Stock
This 3/4 HP, three-phase general purpose motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial processes, manufacturing facilities, and commercial equipment. With a totally enclosed fan cooled motor enclosure and ball bearings for smooth operation, this motor provides reliable and efficient performance. Its high service factor of 1.25 and insulation class F ensure durability and long lifespan. The motor's 1750 rpm nameplate speed and 84% nominal efficiency make it suitable for continuous duty applications, while its CSA certification meets North American standards. Ideal for use in environments up to 40°C, this motor is a reliable choice for demanding industrial and commercial applications.
Top product features:
- Three-phase operation
- Totally enclosed fan-cooled motor enclosure design
- Ball motor bearings
Top product applications:
- Industrial Machinery
- Pumps and Compressors
- Manufacturing Equipment
The BALDOR-RELIANCE - VEM3542 is a 3-phase AC General Purpose Motor, designed for use in various industrial and commercial settings. This motor converts electrical energy into mechanical energy to power different types of machinery. Its versatility allows it to be used across multiple sectors, from manufacturing lines to HVAC systems.
Key Features of the BALDOR-RELIANCE - VEM3542 General Purpose Motor:
- CC Number: The unique identifier assigned by EASA (Electrical Apparatus Service Association) for tracking based on design, specifications, and performance characteristics.
- Duty Cycle: Continuous duty cycle refers to the product's designed operation under specific conditions.
- Frame: 56C frame size conforms to standard specifications for compatibility and interchangeability.
- Full Load Amps: Draws a maximum current of 2.5-2.28/1.14 A when operating at full capacity, as per manufacturer specifications.
- NEMA Premium(R) Rated: Acknowledges that this motor meets certain environmental and energy efficiency standards making it an eco-friendly choice.
- Inverter Rated: Designed for use with a variable frequency drive, according to manufacturer guidelines.
- Motor Enclosure Design: Totally enclosed fan-cooled design is intended to limit exposure to environmental factors, based on manufacturer's design parameters
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.30
- Package Width: 13.90
- Package Height: 12.60
- Package Weight: 35.25
