Capacitor-Start/Run General Purpose Motor, 10 hp HP, 230V AC Voltage, 215T Frame MPN:L1511T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8385955

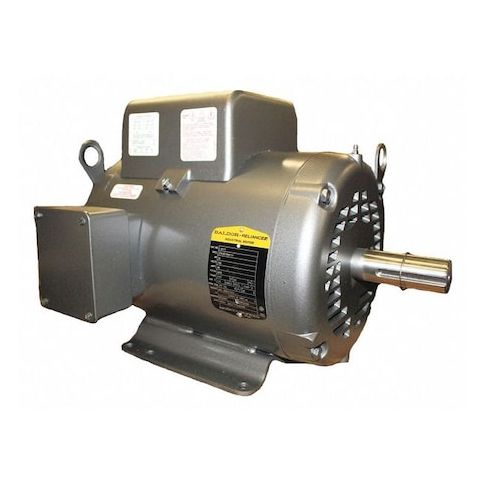

Capacitor-Start/Run General Purpose Motor, 10 hp HP, 230V AC Voltage, 215T Frame
This 10 hp Capacitor-Start/Run General Purpose Motor from BALDOR-RELIANCE is a reliable and efficient solution for various industrial applications. Suitable for use in 230V AC environments, it also operates at 208V, making it a versatile option for different settings. With a continuous duty cycle and a maximum ambient temperature of 40°C, this motor is designed to withstand demanding conditions. Its open drip-proof design and rigid base mounting type provide added protection and stability. Ideal for use in manufacturing, pumping, and conveyor systems, this motor offers a cost-effective and reliable solution for a wide range of industrial applications.
Top product features:
- Capacitor-start/run design for improved starting and running performance
- Single-phase operation for compatibility with standard household electrical systems
- NEMA Design L for high efficiency and reliable operation in a variety of applications
Top product applications:
- Pumps and water treatment systems
- Industrial conveyor belts and machinery
- Fans and blowers for industrial ventilation systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 10 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 46.0 A, 215T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.75
- Package Width: 13.00
- Package Height: 13.00
- Package Weight: 133.00
Product info last updated on March 2, 2026 4:42am UTC
Category: Motors
