Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 56C Frame, 115/230V AC Voltage MPN:VL3508
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8377171

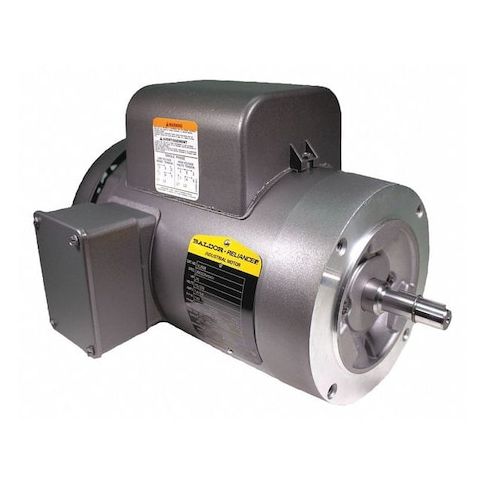

Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 56C Frame, 115/230V AC Voltage
The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/230V AC environments, this motor provides 3/4 hp of power and operates at 1,200 RPM. Its compact 56C frame design makes it ideal for use in tight spaces, and its totally enclosed fan-cooled enclosure protects against dust and debris. Perfect for continuous duty cycles, this motor is suitable for applications such as pumps, fans, and conveyor systems, offering a cost-effective and long-lasting solution for industries that require reliable power.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor efficiency and reliability
- Usable at 208V for flexibility in voltage applications
- Continuous duty cycle for uninterrupted operation in demanding environments
Top product applications:
- Pumps and pumping systems
- Fans and ventilation systems
- Conveyors and conveyor systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,200 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.2 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.40
- Package Width: 11.30
- Package Height: 10.60
- Package Weight: 45.55
Product info last updated on February 20, 2026 6:49pm UTC
Category: Motors
