Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:CL3515
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8359592

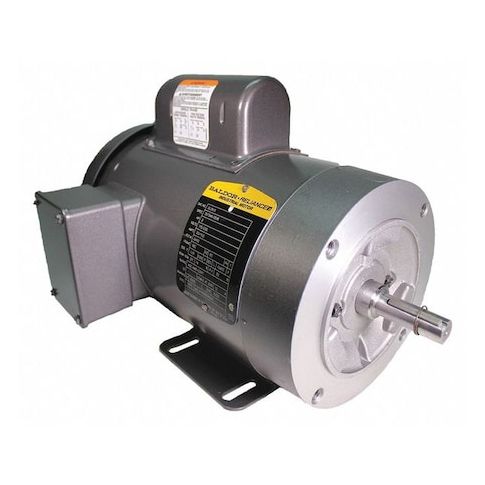

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 56C Frame
The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in environments with a maximum ambient temperature of 40°C, this motor is ideal for industrial and commercial settings where continuous operation is required. Its single-phase design and capacitor-start/run motor design provide a high starting torque, making it perfect for applications such as pumps, fans, and conveyor systems. With a compact 56C frame and totally enclosed fan-cooled design, this motor is easy to install and maintain, providing years of trouble-free operation and minimizing downtime.
Top product features:
- Capacitor-start/run design for improved starting torque and reduced voltage drop
- Totally enclosed fan-cooled motor design for increased heat dissipation and longer lifespan
- Continuous duty cycle operation for reliable performance in demanding applications
Top product applications:
- Pumps and compressors
- Fans and blowers
- Conveyors and conveyor systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 11.5 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.80
- Package Width: 12.20
- Package Height: 10.90
- Package Weight: 52.15
Product info last updated on February 2, 2026 8:01am UTC
Category: Motors
