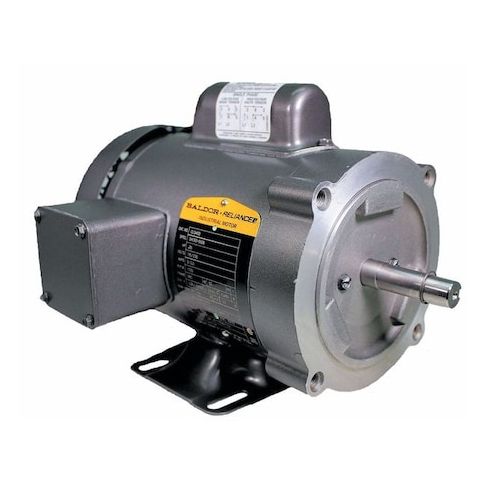

Capacitor-Start/Run General Purpose Motor, 1/4 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:CL3403
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8345145
Capacitor-Start/Run General Purpose Motor, 1/4 hp HP, 115/208-230V AC Voltage, 56C Frame
The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in various industrial and commercial settings, this motor is designed to provide continuous duty operation at a maximum ambient temperature of 40 degrees C. With a single phase design and a nameplate RPM of 1,800, it is ideal for applications such as conveyor systems, pumps, and fans. The motor's capacitor-start/run design and totally enclosed fan cooled enclosure ensure optimal performance and longevity. Its compact size and lightweight design make it easy to install and maintain.
Top product features:
- Totally Enclosed Fan Cooled Design
- Single Phase Motor Design with Capacitor-Start/Run Technology
- Continuous Duty Cycle Capability
Top product applications:
- Pump systems for residential and commercial applications
- Conveyors and conveyor systems in manufacturing environments
- Fans and blowers for HVAC and industrial ventilation systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/4 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 2.5 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 10.90
- Package Height: 9.80
- Package Weight: 21.00
Product info last updated on March 18, 2026 1:34pm UTC
Category: Motors
