Three-Phase General Purpose Motor, 2 HP, 145TC Frame, 208-230/460V AC Voltage, 13 in Overall Length MPN:VEM3587T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8336991

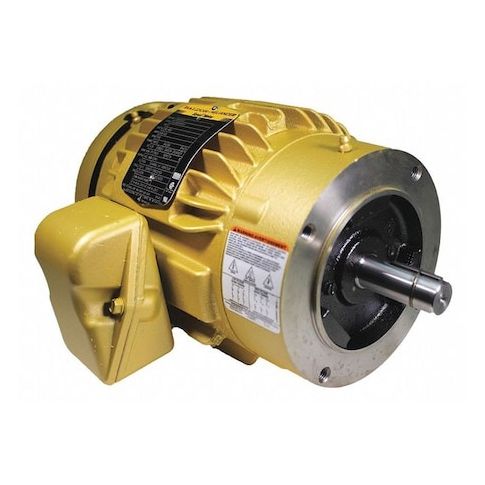

Three-Phase General Purpose Motor, 2 HP, 145TC Frame, 208-230/460V AC Voltage, 13 in Overall Length
This 2 HP three-phase general purpose motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial and commercial use. With its totally enclosed fan cooled motor enclosure, it provides reliable operation in harsh environments. The motor's 86.5% nominal efficiency and 1.15 service factor make it suitable for continuous duty applications. Its compact 145TC frame and CW/CCW rotation make it easy to integrate into existing systems. Suitable for use in facilities such as manufacturing plants, warehouses, and office buildings, this motor is a reliable choice for applications requiring high torque and efficiency.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled motor enclosure design
- Ball motor bearings
Top product applications:
- Industrial conveyor belts
- Material handling equipment
- Pumps and water treatment systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1750 rpm, Frame 145TC, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.8/2.9 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 14.00
- Package Height: 12.60
- Package Weight: 60.00
Product info last updated on March 22, 2026 5:49pm UTC
Category: Motors
