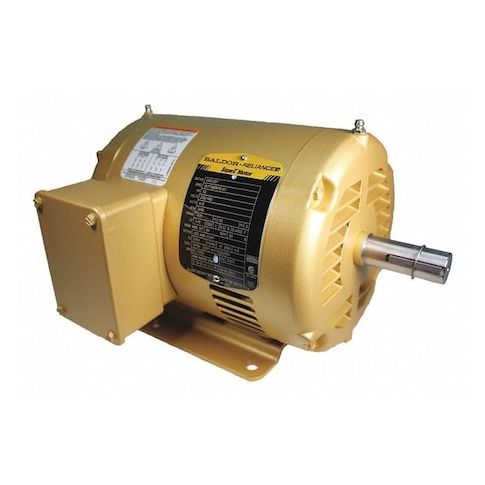

Three-Phase General Purpose Motor, 1 1/2 HP, 143T Frame, 208-230/460V AC Voltage MPN:EM3120T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8333701
Three-Phase General Purpose Motor, 1 1/2 HP, 143T Frame, 208-230/460V AC Voltage
This BALDOR-RELIANCE Three-Phase General Purpose Motor is a reliable and efficient solution for a wide range of industrial applications, including manufacturing, pumping, and material handling. With a 1 1/2 HP rating and 3490 rpm nameplate speed, it provides the power and speed needed to drive demanding loads. Its open drip-proof design and rigid base motor mounting ensure durability and easy installation. Suitable for continuous duty, this motor is ideal for use in environments with ambient temperatures up to 40°C. Its high efficiency and low amp draw make it a cost-effective option for applications requiring reliable and efficient operation.
Top product features:
- Three-Phase Operation
- Ball Motor Bearings
- Continuous Duty Capability
Top product applications:
- Industrial conveyor systems
- Pumps and compressors
- Manufacturing machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3490 rpm, Frame 143T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.0/2.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.40
- Package Width: 11.90
- Package Height: 10.10
- Package Weight: 22.70
Product info last updated on February 4, 2026 8:24am UTC
Category: Motors
