Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:CL3405
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8333674

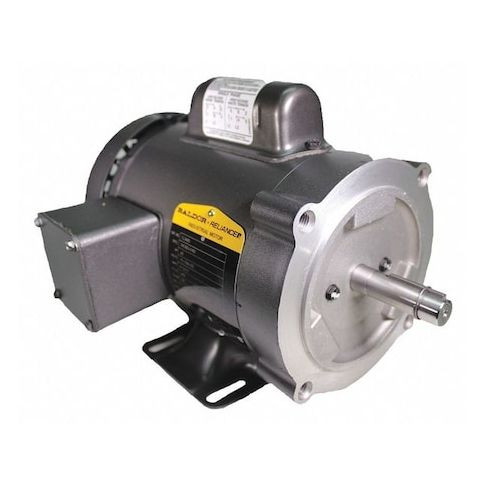

Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 56C Frame
This BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for various applications. Suitable for use in 115/208-230V AC environments, it delivers 1/3 hp of power at 3,600 RPM, making it ideal for light to medium-duty tasks. Its compact 56C frame and totally enclosed fan-cooled design ensure a long lifespan and reduced maintenance. Perfect for use in commercial and industrial settings, this motor is suitable for applications such as conveyor systems, pumps, and fans. With a service factor of 1.35 and continuous duty cycle, it provides consistent performance and reliability.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient operating environment.
- Single Phase design allows for simple and cost-effective installation.
- Capacitor-Start/Run motor design provides reliable and efficient operation at a lower cost.
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/3 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 3.0 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.10
- Package Width: 11.00
- Package Height: 9.60
- Package Weight: 22.05
Product info last updated on February 27, 2026 12:04pm UTC
Category: Motors
