Capacitor-Start/Run General Purpose Motor, 7 1/2 hp HP, 230V AC Voltage, 213T Frame MPN:L1509T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8331827

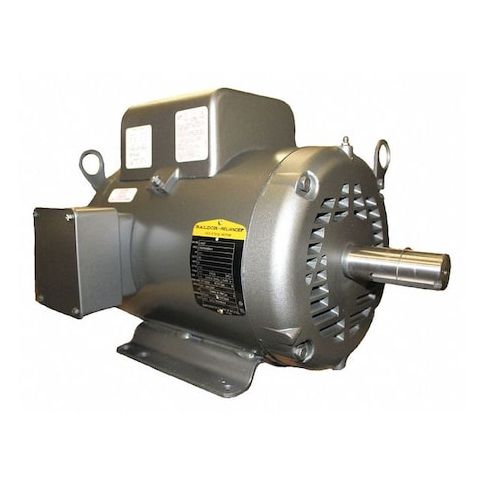

Capacitor-Start/Run General Purpose Motor, 7 1/2 hp HP, 230V AC Voltage, 213T Frame
This 7 1/2 hp capacitor-start/run general purpose motor from BALDOR-RELIANCE is a reliable and efficient solution for a variety of applications. Suitable for use in 230V AC environments, this motor is ideal for commercial and industrial settings where a single-phase motor is required. Its compact 213T frame design makes it easy to integrate into existing systems, while its open drip-proof enclosure provides protection against dust and moisture. With a continuous duty cycle and a service factor of 1.15, this motor is built to withstand heavy use and provide years of reliable operation.
Top product features:
- Capacitor-start/run design provides efficient starting and running capabilities
- Single-phase motor design allows for use in a variety of applications
- Open drip-proof enclosure design protects against dust and water splashes
Top product applications:
- Industrial Pumps
- HVAC Systems
- Material Handling Equipment
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 7 1/2 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 30.0 A, 213T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.50
- Package Width: 16.00
- Package Height: 15.00
- Package Weight: 94.00
Product info last updated on March 5, 2026 4:04am UTC
Category: Motors
