Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 143T Frame MPN:L3510T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8330795

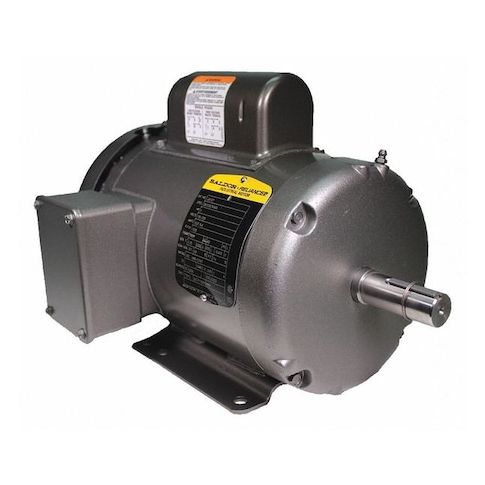

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 143T Frame
This versatile 1 hp Capacitor-Start/Run General Purpose Motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial and commercial use. With a 115/230V AC voltage rating and 6.3A full load amps, it can operate in various environments and conditions. The motor features a totally enclosed fan-cooled design, providing reliable performance in harsh settings. Its continuous duty cycle and 1.15 service factor make it suitable for applications requiring consistent operation. Ideal for use in manufacturing, material handling, and other industrial settings, this motor offers efficient and reliable operation.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reduced maintenance
- Capacitor-Start/Run motor design for efficient and reliable operation
- NEMA Design L for compliance with safety and performance standards
Top product applications:
- Industrial Pumps
- Machine Tools
- Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.3 A, 143T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 11.60
- Package Height: 10.10
- Package Weight: 40.10
Product info last updated on February 1, 2026 6:21am UTC
Category: Motors
