Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56 Frame MPN:EL3503
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8330411

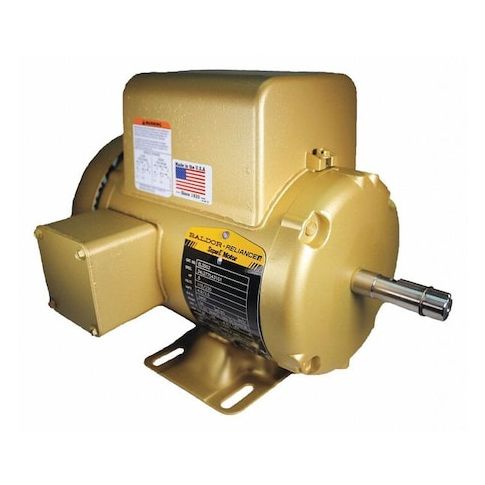

Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56 Frame
This 1/2 hp BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/230V AC environments, it operates at 3,600 RPM and has a continuous duty cycle. The motor's totally enclosed fan-cooled design provides protection from dust and moisture, making it ideal for use in harsh conditions. With a service factor of 1.25 and a maximum ambient temperature of 40°C, this motor is perfect for applications such as industrial equipment, HVAC systems, and material handling. Its compact size and low weight make it easy to integrate into existing systems.
Top product features:
- Capacitor-start/run design provides efficient starting and running performance
- Totally enclosed fan-cooled motor design ensures reliable operation in various environments
- Continuous duty cycle allows for uninterrupted operation over extended periods
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 2.5 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.25
- Package Width: 9.25
- Package Height: 9.00
- Package Weight: 24.00
Product info last updated on April 28, 2026 5:51pm UTC
Category: Motors
