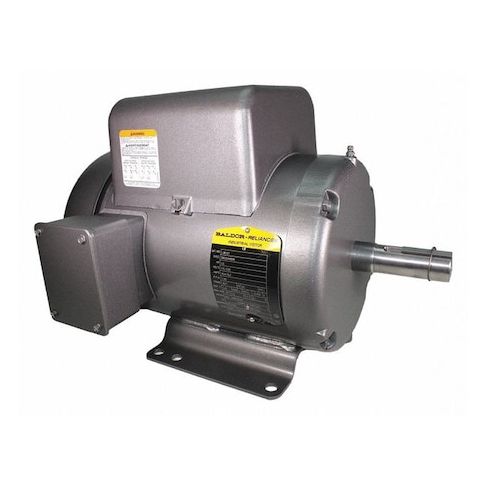

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 184T Frame MPN:L3613T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8316804
Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 184T Frame
The BALDOR-RELIANCE 1.5 hp Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for various industrial applications. Suitable for use in 115/230V AC environments, this motor features a totally enclosed fan-cooled design for optimal heat dissipation and protection. With a continuous duty cycle and 1.15 service factor, it can handle demanding tasks. Its compact 184T frame fits easily into tight spaces, making it ideal for applications such as conveyor systems, pumps, and fans. The motor's long lifespan and low maintenance requirements ensure reduced downtime and increased productivity, making it a valuable addition to any industrial operation.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and clean operating environment.
- Motor Design Capacitor-Start/Run allows for efficient operation and reduced energy consumption.
- Single Phase operation enables the motor to be used in a variety of applications and environments.
Top product applications:
- Pumps
- Fans
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,200 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.2 A, 184T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.00
- Package Width: 16.00
- Package Height: 14.50
- Package Weight: 77.00
Product info last updated on March 18, 2026 1:41pm UTC
Category: Motors
