Three-Phase General Purpose Motor, 1 1/2 HP, 145T Frame, 208-230/460V AC Voltage MPN:EM3584T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8286424

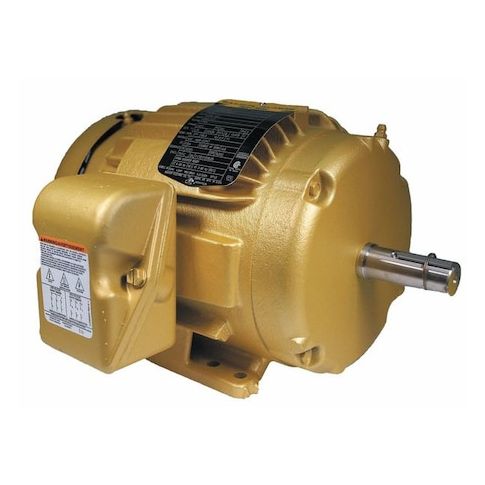

Three-Phase General Purpose Motor, 1 1/2 HP, 145T Frame, 208-230/460V AC Voltage
This 1.5 HP three-phase general purpose motor from BALDOR-RELIANCE is designed for a wide range of industrial applications, including manufacturing, processing, and material handling. With its totally enclosed fan cooled motor enclosure, it provides reliable operation in harsh environments. The motor's rigid base mounting and cast iron frame ensure durability and stability, while its 86.5% nominal efficiency minimizes energy costs. Suitable for continuous duty, this motor is ideal for applications such as conveyor systems, pumps, and fans, where high torque and reliability are required. Its compact size and low weight make it easy to install and maintain.
Top product features:
- Three-phase operation for efficient power usage
- Totally enclosed fan cooled motor enclosure design for reduced noise and heat
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pumps and water treatment systems
- Manufacturing machinery and equipment
- HVAC systems and air conditioning units
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1765 rpm, Frame 145T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.6/2.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.10
- Package Width: 13.80
- Package Height: 12.50
- Package Weight: 53.70
Product info last updated on March 20, 2026 6:13pm UTC
Category: Motors
