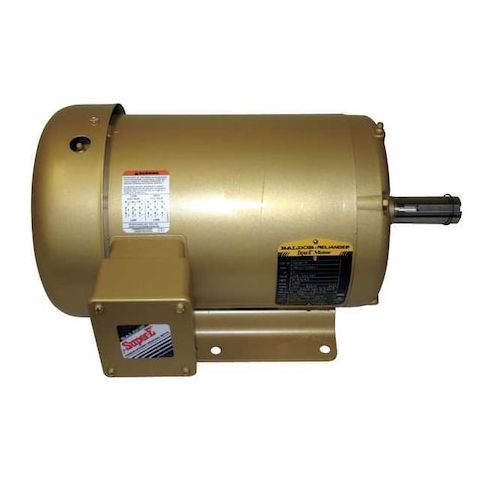

Three-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 1760 rpm Nameplate RPM MPN:CEM3546
Free Shipping
In Stock
This 1 HP three-phase general purpose motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial equipment, pumps, and compressors. Its totally enclosed fan cooled (TEFC) motor enclosure design provides reliable operation in harsh environments. With a nameplate RPM of 1760, this motor delivers efficient power in continuous duty applications. The motor's high service factor of 1.15 and ball bearings ensure long motor life, while its 85.5% nominal efficiency reduces energy costs. Suitable for use in a variety of industries, this motor is a reliable choice for applications requiring high performance and efficiency.
Top product features:
- Totally enclosed fan cooled motor enclosure design
- Ball motor bearings
- Continuous duty operation
Top product applications:
- Pumps and water treatment systems
- Conveyor systems and material handling equipment
- Fans and blowers for HVAC and industrial applications
The BALDOR-RELIANCE - CEM3546 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is intended for the conversion of electrical energy into mechanical energy, which may be used to power a variety of machinery in industrial and commercial settings. Its versatility allows for widespread use across different sectors such as manufacturing lines and HVAC systems.
Key Features of the BALDOR-RELIANCE - CEM3546:
- CC Number: The unique identifier CC010A assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: Features a continuous duty cycle suggesting that it has the potential for extended operation periods prior to requiring rest intervals. This is indicative of its operational capacity.
- Frame: The 56C frame size aligns with standard specifications, implying potential compatibility with various applications.
- Full Load Amps: Has the capability to draw a maximum current of 3/1.5 A when functioning at its highest capacity - an important factor in determining necessary power supply parameters.
- Green Certification or Other Recognition: Holds NEMA Premium(R) Rating which indicates adherence to specific environmental and energy efficiency standards, positioning it as an environmentally conscious option.
- Inverter Rated: Intended for use with variable frequency drives which could provide more precise control over speed and torque - potentially beneficial for high-performance applications.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.50
- Package Width: 10.50
- Package Height: 7.00
- Package Weight: 36.05
