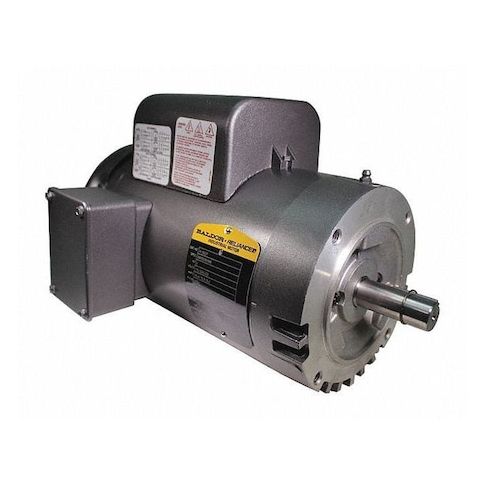

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 145TC Frame MPN:VL1322T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8283213
Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/208-230V AC Voltage, 145TC Frame
The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Ideal for use in industrial settings, this motor can handle heavy loads and operate continuously in temperatures up to 40°C. With a 2 hp rating and 8.2A full load amps, it's perfect for powering machinery and equipment that requires high torque and speed. Its compact 145TC frame design makes it easy to integrate into existing systems. Suitable for use at 115/208-230V AC, this motor is a versatile and cost-effective choice for various industries, including manufacturing, HVAC, and more.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Single Phase motor design for versatility and adaptability
- Capacitor-Start/Run motor design for efficient starting and reduced energy consumption
Top product applications:
- Industrial Laundry Equipment
- Pump Systems
- Textile Machinery
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.2 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.60
- Package Width: 11.70
- Package Height: 10.80
- Package Weight: 47.85
Product info last updated on February 20, 2026 7:55am UTC
Category: Motors
