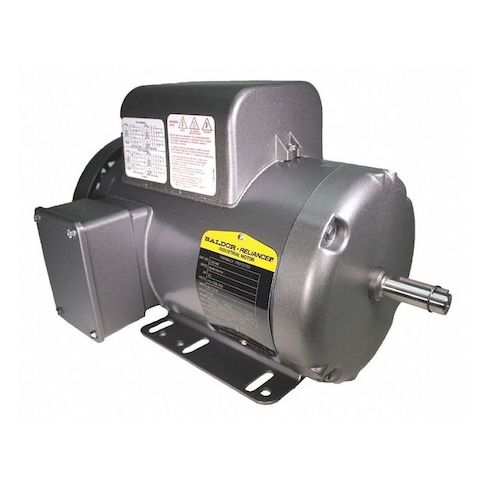

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 56H Frame MPN:L3514A
Discount: See in Cart
Out Of Stock
Out Of Stock
SKU
510-G8280422
Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 56H Frame
The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for various industrial applications. With a 1.5 hp rating and 1800 RPM, this motor is suitable for use in applications such as pumps, fans, and compressors. Its capacitor-start/run design provides a high starting torque and smooth operation, while its totally enclosed fan-cooled enclosure ensures durability and protection from environmental factors. The motor's continuous duty cycle and auto thermal protection make it an ideal choice for applications requiring consistent performance. Its compact design and ease of installation make it a convenient addition to any industrial setup.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reliability
- Continuous duty cycle for extended operation without overheating
- 56H frame size for compact installation and reduced space requirements
Top product applications:
- Pumps and Water Treatment Systems
- Fans and Blowers
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.0 A, 56H Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.50
- Package Width: 12.10
- Package Height: 10.30
- Package Weight: 51.25
Product info last updated on February 18, 2026 6:55am UTC
Category: Motors
