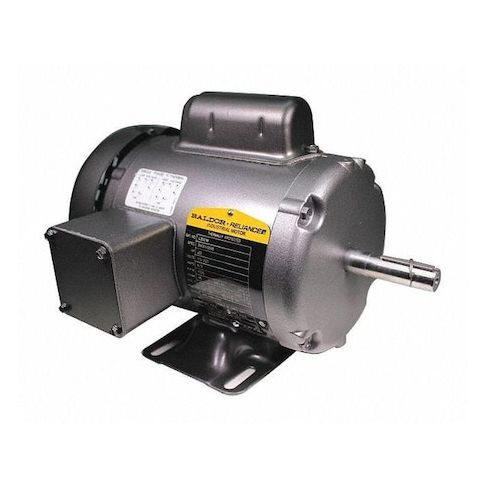

Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 115/230V AC Voltage, 56 Frame
This 1/3 hp general purpose motor from BALDOR-RELIANCE is a reliable and efficient solution for a variety of applications. Suitable for use in single-phase systems, it features a capacitor-start/run design for smooth and quiet operation. With a nameplate RPM of 1,800 and a voltage range of 115/230V AC, this motor is perfect for applications that require a moderate level of power. Its compact 56 frame size makes it ideal for use in tight spaces, and its totally enclosed fan-cooled design ensures reliable operation in harsh environments. Ideal for use in industrial and commercial settings, this motor is a great choice for applications such as pumps, fans, and conveyor systems.
Top product features:
- Capacitor-start/run design for efficient starting and running
- Totally enclosed fan-cooled motor for reduced heat and increased durability
- Continuous duty cycle capability for extended operation
Top product applications:
- Pumps
- Fans
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/3 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.0 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.10
- Package Width: 11.00
- Package Height: 9.60
- Package Weight: 22.55
