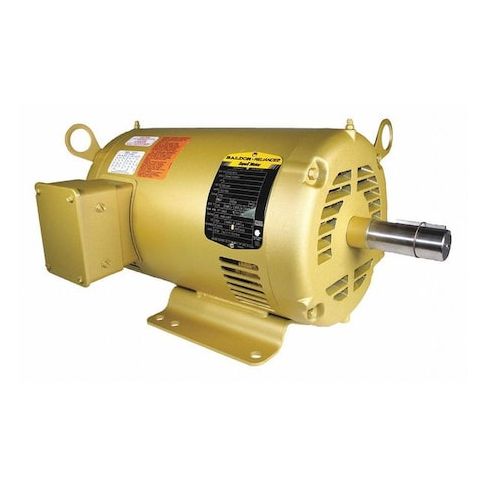

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 208-230/460V AC Voltage, 1750 rpm Nameplate RPM MPN:EM3218TA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8270665
Three-Phase General Purpose Motor, 5 HP, 184T Frame, 208-230/460V AC Voltage, 1750 rpm Nameplate RPM
This 5 HP three-phase general purpose motor from BALDOR-RELIANCE is designed for demanding industrial applications. With a nameplate RPM of 1750 and a robust 184T frame, it can handle heavy loads and withstand harsh environments. Its open drip proof motor enclosure design and rigid base motor mounting ensure reliable operation and easy maintenance. Ideal for use in manufacturing, processing, and material handling facilities, this motor provides efficient power and long-lasting performance. Its high efficiency and continuous duty rating make it a cost-effective solution for applications requiring high reliability and minimal downtime.
Top product features:
- Three-phase operation provides balanced power to the motor
- Open drip-proof motor enclosure design protects against dust and water
- Ball bearings ensure smooth and quiet motor operation
Top product applications:
- Manufacturing plants
- Industrial facilities
- Pumps and conveyor systems
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 5 HP, Nameplate RPM 1750 rpm, Frame 184T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 13.2/6.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.40
- Package Width: 13.40
- Package Height: 11.10
- Package Weight: 82.90
Product info last updated on March 14, 2026 8:48am UTC
Category: Motors
