Three-Phase General Purpose Motor, 1/4 HP, 56 Frame, 230/460V AC Voltage, 1, 140 Nameplate RPM MPN:M3531
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8267174

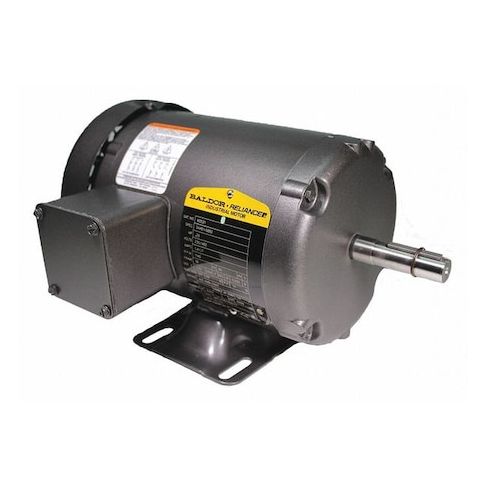

Three-Phase General Purpose Motor, 1/4 HP, 56 Frame, 230/460V AC Voltage, 1, 140 Nameplate RPM
This 1/4 HP three-phase general purpose motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial automation, HVAC, and material handling. Its totally enclosed fan cooled design provides reliable operation in harsh environments, while its rigid base motor mounting type ensures stable performance. With a nameplate RPM of 1,140 and a maximum ambient temperature of 40 degrees C, this motor is suitable for continuous duty in various industries. Its high efficiency and CSA certification make it a reliable choice for applications requiring durable and efficient motor performance.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable operation in varying temperatures
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pump applications
- Industrial fans
- Conveyor systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/4 HP, Nameplate RPM 1,140, Frame 56, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.4/0.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.35, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 68 Percent, Continuous Duty, 1,101-1,200, CSA, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.60
- Package Width: 11.70
- Package Height: 11.00
- Package Weight: 21.00
Product info last updated on February 6, 2026 3:23am UTC
Category: Motors
