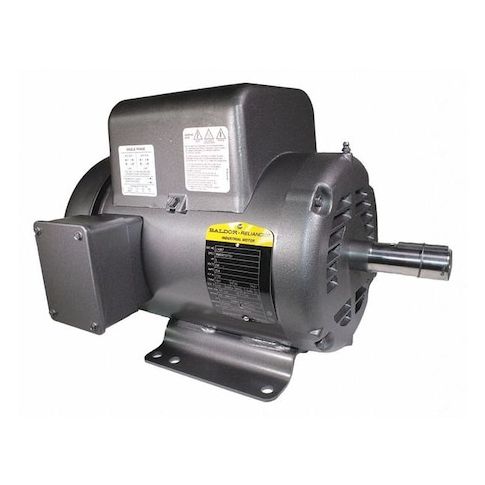

Capacitor-Start/Run General Purpose Motor, 5 hp HP, 230V AC Voltage, 184T Frame
The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for various applications. Designed for single-phase operation, this 5 hp motor is suitable for use in a range of industries, including manufacturing, HVAC, and pumping systems. Its 1,800 RPM nameplate speed and 20.6 A full-load current make it ideal for applications requiring moderate power and speed. With a 1.15 service factor and continuous duty cycle, this motor can handle demanding tasks while maintaining a high level of performance and reliability. Its open drip-proof design and CW/CCW rotation make it easy to integrate into existing systems.
Top product features:
- Capacitor-start/run design allows for efficient starting and operation of the motor
- Single-phase operation enables the motor to be used in a variety of applications
- Open drip-proof enclosure protects the motor from dust and water splashing
Top product applications:
- Industrial conveyor systems
- Pump applications in water treatment plants
- Oil and gas industry equipment operation
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 20.6 A, 184T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 12.60
- Package Height: 13.10
- Package Weight: 78.50
