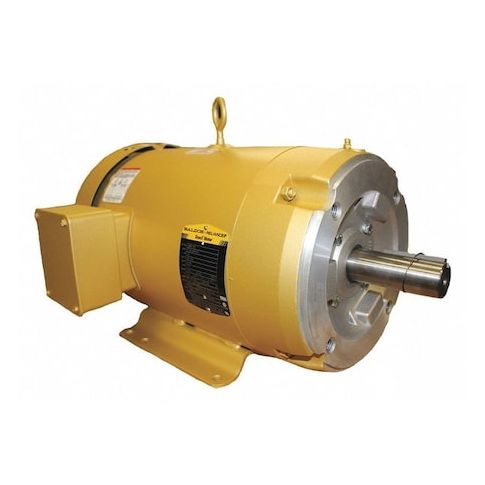

Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 230/460V AC Voltage, 3490 rpm Nameplate RPM MPN:CEM3711T
Free Shipping
In Stock
This 10 HP, three-phase general purpose motor from BALDOR-RELIANCE is designed for a wide range of applications, including manufacturing, pumping, and HVAC systems. Its totally enclosed fan cooled motor enclosure provides reliable operation in demanding environments, while its 90.2% nominal efficiency ensures cost-effective energy use. The motor's 215TC frame and 230/460V AC voltage make it suitable for use in a variety of settings, from commercial to industrial. With its continuous duty rating and ball bearings, this motor is built to last, providing a reliable source of power for your operations.
Top product features:
- Three-Phase General Purpose Motor design provides continuous duty operation.
- Totally Enclosed Fan Cooled Motor Enclosure Design allows for efficient heat dissipation.
- Ball Motor Bearings provide a durable and long-lasting rotation mechanism.
Top product applications:
- Industrial manufacturing plants
- Pump and fan systems
- Textile machinery
The BALDOR-RELIANCE - CEM3711T is a General Purpose Motor, classified under the 3-Phase AC Motors category. This motor is designed to convert electrical energy into mechanical energy, enabling operation of various types of machinery in industrial and commercial settings. Its versatile nature allows it to be used across different sectors including manufacturing lines and HVAC systems.
Key Features of the BALDOR-RELIANCE - CEM3711T General Purpose Motor:
- CC Number: The unique identifier assigned by EASA for classification and tracking based on design, specifications, and performance characteristics.
- Duty Cycle: The duty cycle is continuous, which refers to the motor's ability to operate continuously under certain conditions.
- Frame: 215TC frame size conforms to standard specifications for compatibility and interchangeability.
- Full Load Amps: Draws a maximum current of 23.6/11.8 A when operating at full capacity, indicating the necessary power supply for operation within specified ranges.
- NEMA Premium(R) Rated: Acknowledged as meeting certain environmental and energy efficiency standards making it an eco-friendly choice for industry professionals.
- Inverter Rated: Rated for use with a variable frequency drive, offering potential control over speed and torque based on application needs.
- Motor Enclosure Design: Features a totally enclosed fan-cooled design that aims to shield internal components from environmental factors
- this also informs the cooling method used in its design
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 16.50
- Package Height: 16.00
- Package Weight: 121.00
