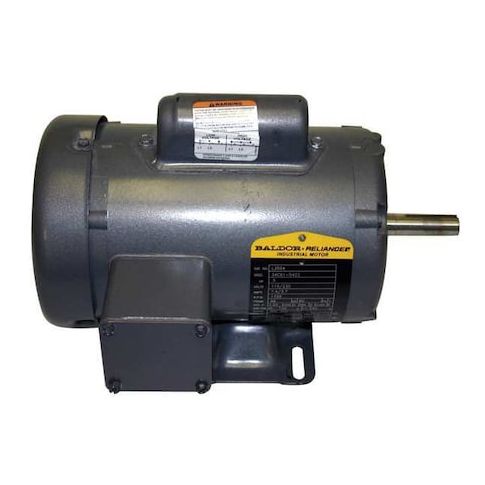

Capacitor-Start/Run General Purpose Motor, 7 1/2 hp HP, 230V AC Voltage, 215T Frame MPN:L3710T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8185922
Capacitor-Start/Run General Purpose Motor, 7 1/2 hp HP, 230V AC Voltage, 215T Frame
This 7.5 hp Capacitor-Start/Run General Purpose Motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial and commercial use. Its single-phase motor design provides efficient and reliable operation, while its totally enclosed fan-cooled enclosure protects against dust and moisture. With a nameplate RPM of 1,800 and a voltage rating of 230V AC, this motor is suitable for use in environments where a high level of performance and efficiency are required. Its compact size and durable construction make it an ideal choice for applications such as pumps, fans, and conveyor systems.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Continuous duty cycle for uninterrupted operation
- Single Phase, Capacitor-Start/Run motor design for efficient and reliable performance
Top product applications:
- Industrial conveyor systems
- Pump applications in water treatment plants
- Textile machinery
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 7 1/2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 29.0 A, 215T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.00
- Package Width: 17.00
- Package Height: 16.00
- Package Weight: 134.00
Product info last updated on February 4, 2026 3:08pm UTC
Category: Motors
