Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 182TC Frame MPN:VL1406T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8169655

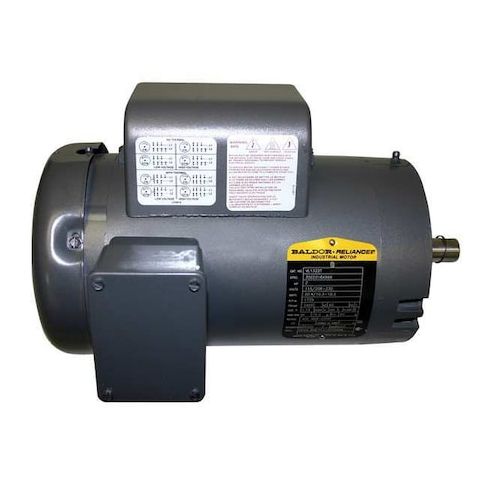

Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 182TC Frame
This 3 hp Capacitor-Start/Run General Purpose Motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial and commercial use. Its single-phase motor design and 115/230V AC voltage make it suitable for various settings, while its 182TC frame provides a compact and efficient solution. The motor's 3,600 RPM nameplate speed and 1.15 service factor ensure reliable performance in continuous duty cycles. With a maximum ambient temperature of 40°C and open drip-proof design, this motor is perfect for applications where reliability and efficiency are crucial, such as in manufacturing, material handling, and pumping systems.
Top product features:
- Capacitor-start/run design for improved starting torque and efficiency
- Single-phase motor design for use in applications with single-phase power sources
- Open drip-proof enclosure design for protection against dust and splashes
Top product applications:
- Pumps
- Fans
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 13.6 A, 182TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design L, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 16.30
- Package Height: 12.90
- Package Weight: 61.00
Product info last updated on March 28, 2026 8:26pm UTC
Category: Motors
