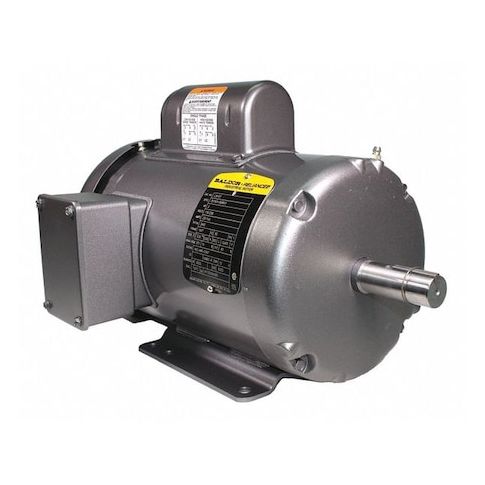

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 145T Frame MPN:L3515T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8161991
Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 145T Frame
This 2 hp Capacitor-Start/Run General Purpose Motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial and commercial use. Its single phase design and 3,600 RPM nameplate speed make it suitable for various industrial processes, such as pumping, conveying, and material handling. The motor's totally enclosed fan cooled design and Class F insulation ensure reliable and efficient operation in harsh environments. With a service factor of 1.15 and continuous duty cycle, this motor provides reliable performance and long lifespan. Its compact size and versatility make it an ideal choice for a variety of applications, including HVAC, manufacturing, and more.
Top product features:
- Capacitor-start/run design provides efficient starting and running capabilities
- Totally enclosed fan-cooled design protects against dust and moisture
- Continuous duty cycle allows for uninterrupted operation under normal conditions
Top product applications:
- Industrial Automation
- Factory Production Lines
- Material Handling Systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 11.5 A, 145T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.30
- Package Width: 11.80
- Package Height: 11.00
- Package Weight: 52.30
Product info last updated on January 17, 2026 2:57am UTC
Category: Motors
