Three-Phase General Purpose Motor, 1 HP, 143TC Frame, 208-230/460V AC Voltage MPN:CEM3116T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8157073

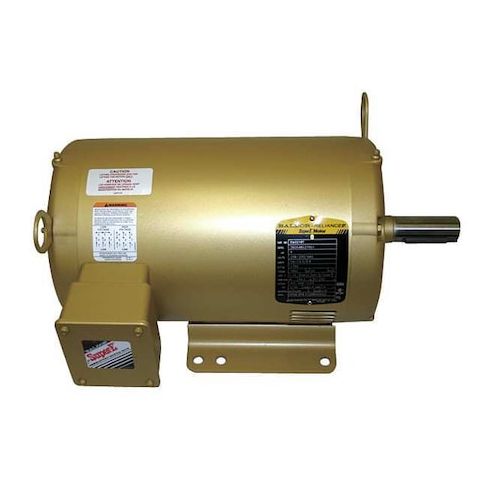

Three-Phase General Purpose Motor, 1 HP, 143TC Frame, 208-230/460V AC Voltage
This 1 HP three-phase general purpose motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial processes, commercial facilities, and manufacturing environments. Its robust construction and efficient operation make it ideal for continuous duty use, with a maximum ambient temperature of 40°C and a service factor of 1.15. The motor's open drip-proof enclosure design and steel frame ensure durability and reliability, while its ball bearings provide smooth operation and extended lifespan. Suitable for use in environments with 208-230/460V AC voltage, this motor is a reliable choice for applications requiring high performance and efficiency.
Top product features:
- Three-phase operation for efficient power transmission
- Open drip-proof motor enclosure design for protection against dust and moisture
- Ball motor bearings for smooth and durable operation
Top product applications:
- Industrial Automation
- Pumping Systems
- Conveying Systems
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 HP, Nameplate RPM 1760 rpm, Frame 143TC, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3/1.5 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.20
- Package Width: 11.80
- Package Height: 10.90
- Package Weight: 34.90
Product info last updated on March 2, 2026 3:53pm UTC
Category: Motors
