Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 182T Frame MPN:L3605T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8144832

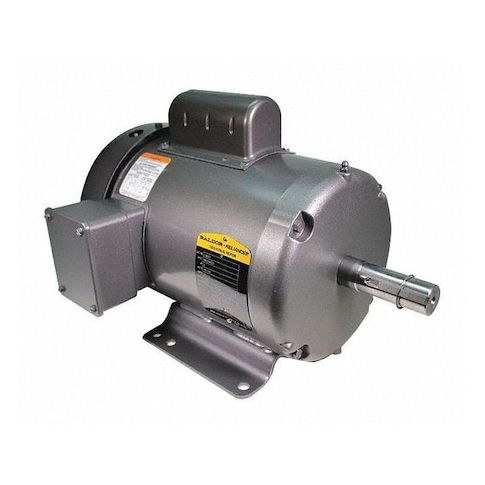

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 182T Frame
This 2 hp Capacitor-Start/Run General Purpose Motor from BALDOR-RELIANCE is a reliable and efficient solution for a wide range of industrial applications. Suitable for use in environments with temperatures up to 40°C, this motor can be used in applications such as pumps, fans, and compressors. Its continuous duty cycle and high service factor make it ideal for demanding operations. With a compact 182T frame and totally enclosed fan-cooled design, this motor is easy to install and maintain. Its 115/230V AC voltage compatibility and 1,800 RPM nameplate speed make it a versatile choice for various industries, including manufacturing, HVAC, and more.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reliability
- Single Phase operation for flexibility in installation and use
- Continuous duty cycle for high usage and performance
Top product applications:
- Industrial machinery such as conveyor belts and pumps
- Compressors and air conditioning equipment
- Fans and blowers for ventilation and air circulation
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 11.5 A, 182T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.20
- Package Width: 15.80
- Package Height: 11.80
- Package Weight: 65.20
Product info last updated on February 4, 2026 8:24pm UTC
Category: Motors
