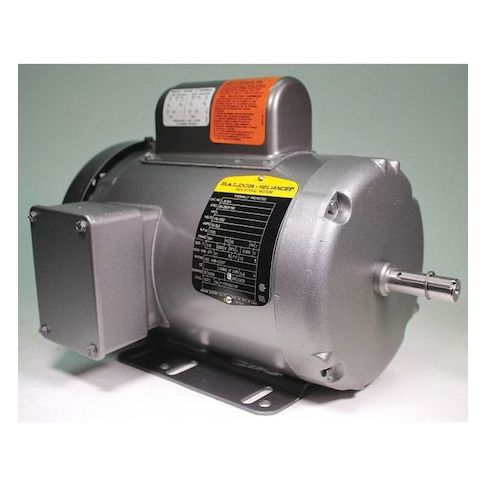

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56H Frame MPN:L3510A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8112185
Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56H Frame
The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/230V AC environments, this motor delivers 1 hp of power at 1,800 RPM, with a continuous duty cycle and auto thermal protection. Its totally enclosed fan cooled design ensures optimal performance in harsh conditions. Ideal for use in industrial settings, the motor's compact 56H frame and single-phase design make it easy to integrate into existing systems. With its high service factor and Ins. Class F rating, this motor provides years of reliable service, reducing downtime and increasing productivity.
Top product features:
- Capacitor-start/run design provides efficient starting and running capabilities
- Totally enclosed fan cooled design ensures reliable operation in harsh environments
- Single phase motor design allows for easy installation and reduced complexity
Top product applications:
- Industrial conveyor systems
- Textile machinery
- Pumps
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.5 A, 56H Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.70
- Package Width: 11.50
- Package Height: 10.70
- Package Weight: 39.65
