Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:CL3501
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8104582

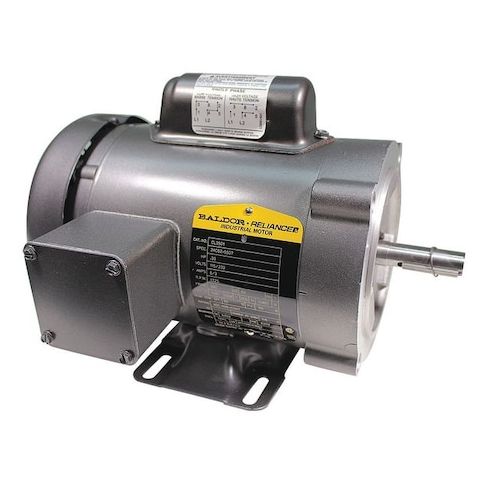

Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 56C Frame
This 1/3 hp Capacitor-Start/Run General Purpose Motor from Baldor-Reliance is designed for a wide range of applications, including industrial, commercial, and residential use. Its single phase motor design and 1,800 RPM nameplate speed make it ideal for applications such as pumps, fans, and compressors. The motor's capacitor-start/run design provides efficient and reliable operation, while its totally enclosed fan cooled design ensures safe and quiet operation in a variety of environments. With a 1.35 service factor and 40°C maximum ambient temperature, this motor is built to withstand demanding conditions and provide years of reliable service.
Top product features:
- Totally Enclosed Fan Cooled design provides improved protection against dust and moisture.
- Continuous Duty Cycle capability allows for uninterrupted operation without overheating.
- Nameplate RPM of 1,800 RPM enables high-speed applications.
Top product applications:
- Pump applications
- Fans and blowers
- Conveyors and material handling equipment
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/3 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 3.0 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 11.00
- Package Height: 9.40
- Package Weight: 22.95
Product info last updated on February 4, 2026 6:35pm UTC
Category: Motors
