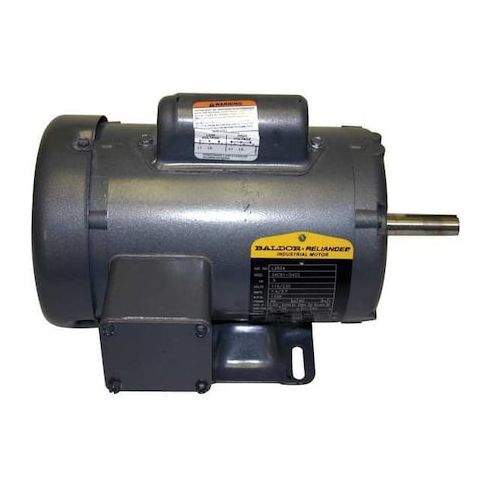

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 182T Frame
This 2 horsepower single-phase motor is a reliable and efficient solution for a variety of applications. Suitable for use in 115/230V AC environments, it features a capacitor-start/run design for optimal performance. The motor's totally enclosed fan-cooled design ensures long-lasting operation in harsh conditions. Its compact 182T frame makes it ideal for use in tight spaces. With a continuous duty cycle and manual thermal protection, this motor is perfect for applications such as industrial pumps, fans, and blowers. Its NEMA Design L rating ensures compliance with industry standards, making it a trusted choice for a wide range of uses.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure for improved protection and durability
- Single Phase Motor Design with Capacitor-Start/Run for efficient operation and reduced energy consumption
- Continuous Duty Cycle for reliable and consistent performance in demanding applications
Top product applications:
- Industrial conveyor belt systems
- Pumps and water treatment systems
- Fans and blowers in HVAC systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 11.0 A, 182T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 11 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 13.90
- Package Height: 12.80
- Package Weight: 73.75
