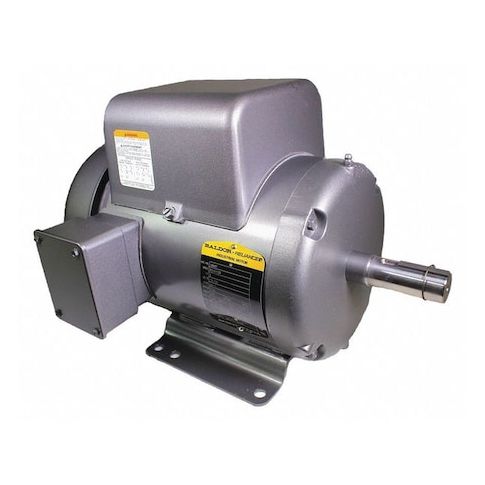

Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 184T Frame MPN:L3609T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8071454
Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 184T Frame
This BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/230V AC environments, this motor is perfect for industrial and commercial settings where a single-phase motor is required. With a 3 horsepower rating and 1,800 RPM, it provides consistent performance and can handle demanding tasks. Its totally enclosed fan-cooled design ensures optimal cooling and reduces maintenance needs. Ideal for applications such as pumps, fans, and conveyor systems, this motor offers a cost-effective and reliable solution for continuous duty cycles.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor reliability and reduced maintenance
- Capacitor-Start/Run motor design for efficient operation and reduced energy consumption
- NEMA Design L for compliance with industry standards and enhanced safety features
Top product applications:
- Industrial machinery
- Pumps
- Fans
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 14.0 A, 184T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.30
- Package Width: 16.00
- Package Height: 14.80
- Package Weight: 80.00
Product info last updated on February 2, 2026 10:04am UTC
Category: Motors
